Product Type: LED Downlight
Description:

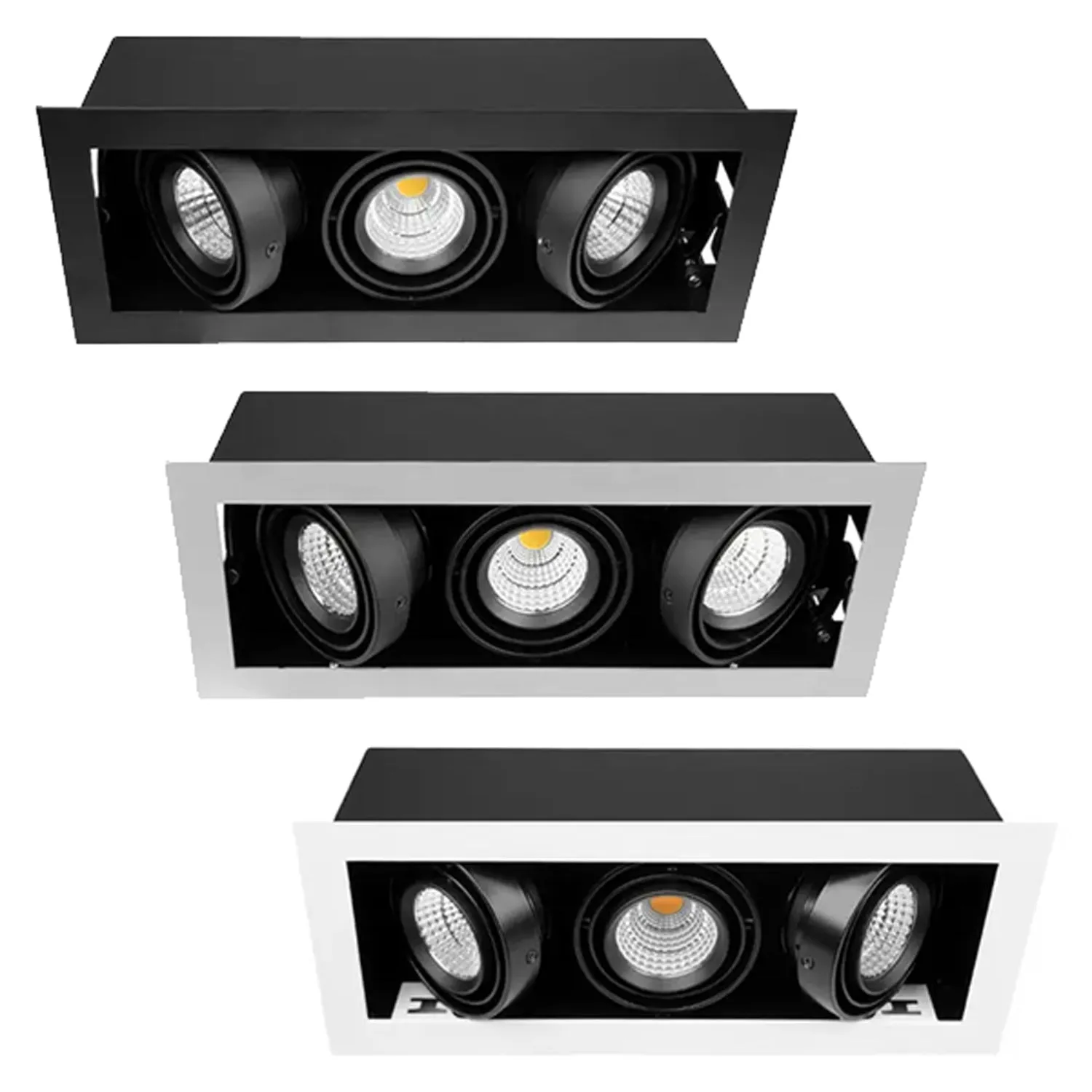

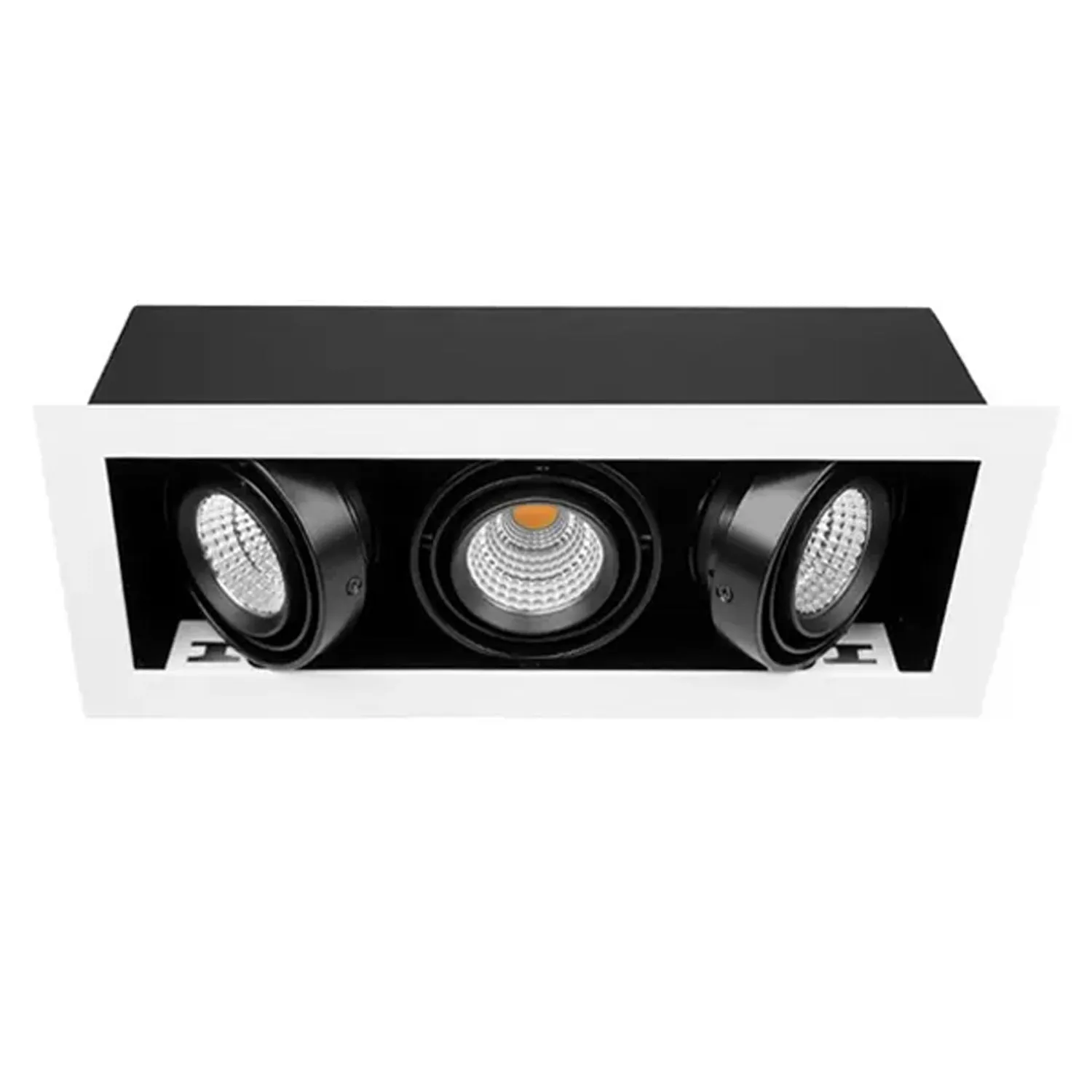

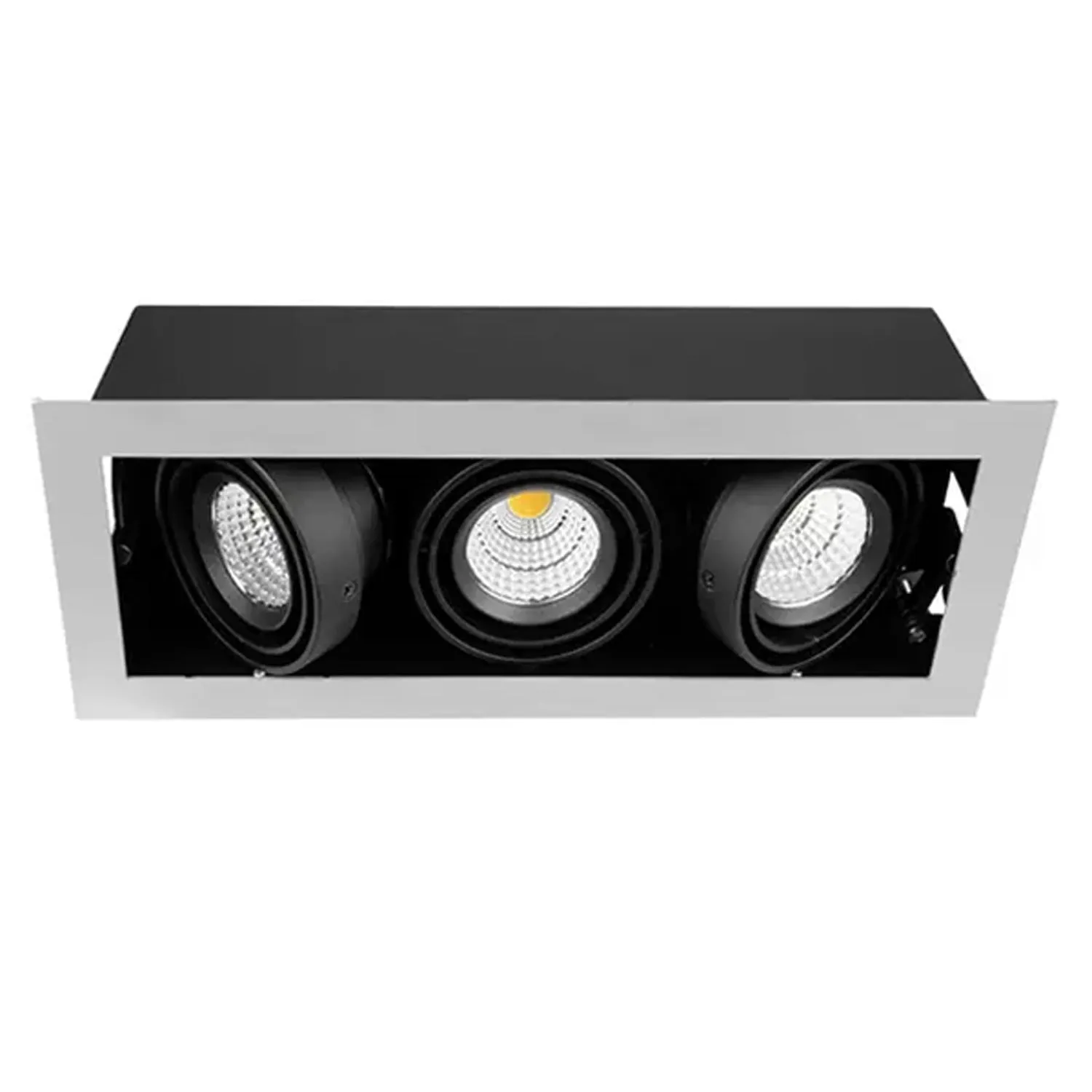

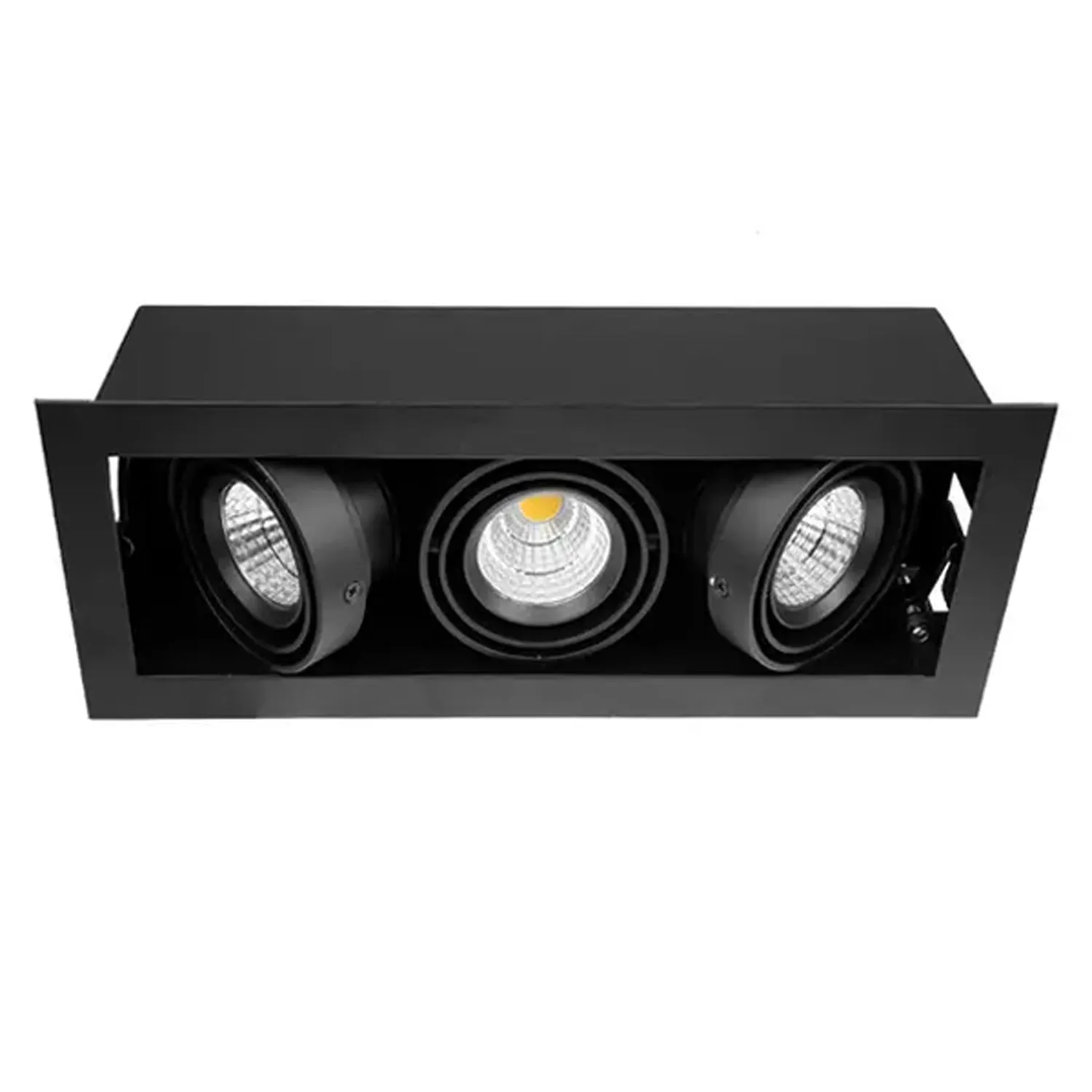

3x10 Watt square LED downlight featuring 3 light engines, each with a single COB LED design available in 2700k, 3000k, 4000k and 5000k colour temperature options in 90 CRI or 2700k, 3000k and 4000k VIVID options.Large passive heatsinks provide effective thermal management ensuring high output and long lifespan. The Miniled range is supplied with remote driver.
Specifications:
- Input Voltage: 240v
- System Power: 35.1w
- Led Power: 30w
- Colour Rendering: 90
- IP Rating: IP20
- Tilt-Angle: 35 x 35°
Dimension:
- Length: 335mm
- Width: 130mm
- Height: 95mm
- Cut-Out: 315x115mm
| CCT | Trim Colour | Lumens | Beam Angle | CRI | |
|---|---|---|---|---|---|
| 3x10 | 2700K | Black | 1300Lm | Medium | 90 |
| 3x10 | 2700K | Silver | 1300Lm | Medium | 90 |
| 3x10 | 2700K | White | 1300Lm | Medium | 90 |
| 3x10 | 2700K | Black | 1300Lm | Narrow | 90 |
| 3x10 | 2700K | Silver | 1300Lm | Narrow | 90 |
| 3x10 | 2700K | White | 1300Lm | Narrow | 90 |
| 3x10 | 2700K | Black | 1300Lm | Wide | 90 |
| 3x10 | 2700K | Silver | 1300Lm | Wide | 90 |
| 3x10 | 2700K | White | 1300Lm | Wide | 90 |
| 3x10 | 3000K | Black | 1335Lm | Medium | 90 |
| 3x10 | 3000K | Silver | 1335Lm | Medium | 90 |
| 3x10 | 3000K | White | 1335Lm | Medium | 90 |
| 3x10 | 3000K | Black | 1335Lm | Narrow | 90 |
| 3x10 | 3000K | Silver | 1335Lm | Narrow | 90 |
| 3x10 | 3000K | White | 1335Lm | Narrow | 90 |
| 3x10 | 3000K | Black | 1335Lm | Wide | 90 |
| 3x10 | 3000K | Silver | 1335Lm | Wide | 90 |
| 3x10 | 3000K | White | 1335Lm | Wide | 90 |
| 3x10 | 4000K | Black | 1390Lm | Medium | 90 |
| 3x10 | 4000K | Silver | 1390Lm | Medium | 90 |
| 3x10 | 4000K | White | 1390Lm | Medium | 90 |
| 3x10 | 4000K | Black | 1390Lm | Narrow | 90 |
| 3x10 | 4000K | Silver | 1390Lm | Narrow | 90 |
| 3x10 | 4000K | White | 1390Lm | Narrow | 90 |
| 3x10 | 4000K | Black | 1390Lm | Wide | 90 |
| 3x10 | 4000K | Silver | 1390Lm | Wide | 90 |
| 3x10 | 4000K | White | 1390Lm | Wide | 90 |
| 3x10 | 5000K | Black | 1410Lm | Medium | 90 |
| 3x10 | 5000K | Silver | 1410Lm | Medium | 90 |
| 3x10 | 5000K | White | 1410Lm | Medium | 90 |
| 3x10 | 5000K | Black | 1410Lm | Narrow | 90 |
| 3x10 | 5000K | Silver | 1410Lm | Narrow | 90 |
| 3x10 | 5000K | White | 1410Lm | Narrow | 90 |
| 3x10 | 5000K | Black | 1410Lm | Wide | 90 |
| 3x10 | 5000K | Silver | 1410Lm | Wide | 90 |
| 3x10 | 5000K | White | 1410Lm | Wide | 90 |
| 3x10 | 2700K | Black | 1300Lm | Medium | VIVID |
| 3x10 | 2700K | Silver | 1300Lm | Medium | VIVID |
| 3x10 | 2700K | White | 1300Lm | Medium | VIVID |
| 3x10 | 2700K | Black | 1300Lm | Narrow | VIVID |
| 3x10 | 2700K | Silver | 1300Lm | Narrow | VIVID |
| 3x10 | 2700K | White | 1300Lm | Narrow | VIVID |
| 3x10 | 2700K | Black | 1300Lm | Wide | VIVID |
| 3x10 | 2700K | Silver | 1300Lm | Wide | VIVID |
| 3x10 | 2700K | White | 1300Lm | Wide | VIVID |
| 3x10 | 3000K | Black | 1335Lm | Medium | VIVID |
| 3x10 | 3000K | Silver | 1335Lm | Medium | VIVID |
| 3x10 | 3000K | White | 1335Lm | Medium | VIVID |
| 3x10 | 3000K | Black | 1335Lm | Narrow | VIVID |
| 3x10 | 3000K | Silver | 1335Lm | Narrow | VIVID |
| 3x10 | 3000K | White | 1335Lm | Narrow | VIVID |
| 3x10 | 3000K | Black | 1335Lm | Wide | VIVID |
| 3x10 | 3000K | Silver | 1335Lm | Wide | VIVID |
| 3x10 | 3000K | White | 1335Lm | Wide | VIVID |
| 3x10 | 4000K | Black | 1390Lm | Medium | VIVID |
| 3x10 | 4000K | Silver | 1390Lm | Medium | VIVID |
| 3x10 | 4000K | White | 1390Lm | Medium | VIVID |
| 3x10 | 4000K | Black | 1390Lm | Narrow | VIVID |
| 3x10 | 4000K | Silver | 1390Lm | Narrow | VIVID |
| 3x10 | 4000K | White | 1390Lm | Narrow | VIVID |
| 3x10 | 4000K | Black | 1390Lm | Wide | VIVID |
| 3x10 | 4000K | Silver | 1390Lm | Wide | VIVID |
| 3x10 | 4000K | White | 1390Lm | Wide | VIVID |
